Height can be measured digitally with the integrated measuring rod.

seca 763

seca 763

The headpiece on the height measuring rod is especially large to ensure correct positioning of the head. Precise measurements are guaranteed.

seca 763

seca 763

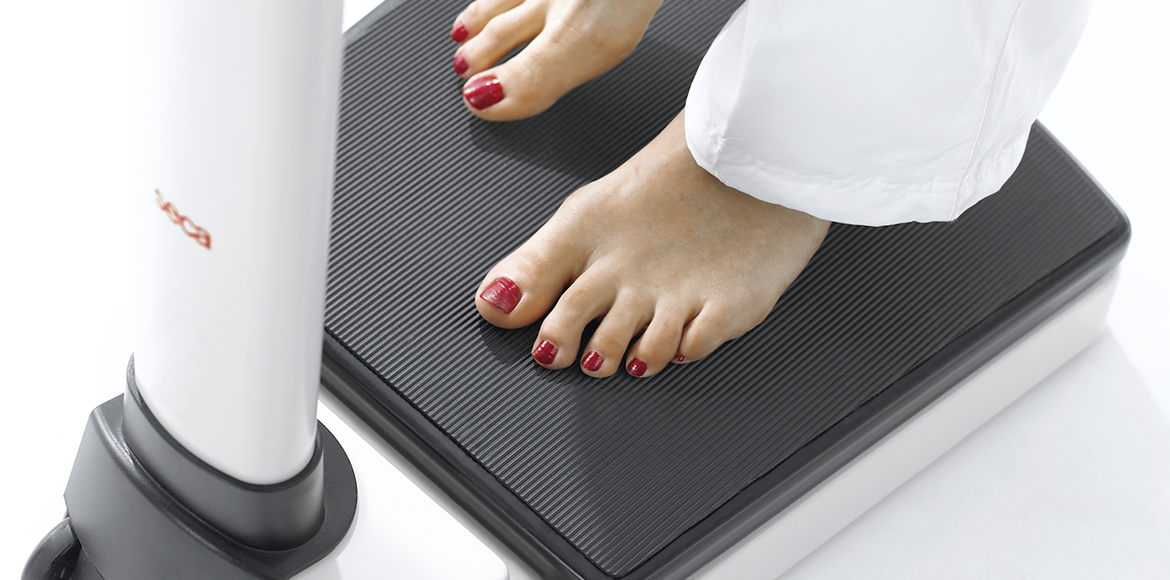

The scaleʼs low height enables even heavier patients to step effortlessly onto the platform.

seca 763

360° view:
Press and hold the left mouse button to rotate the product.

seca 763

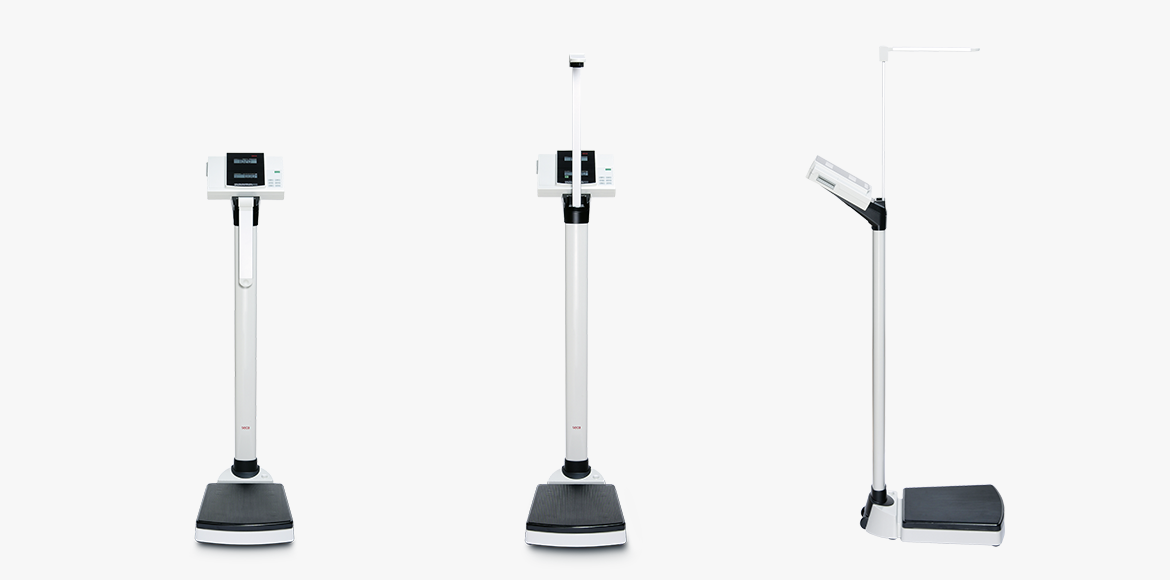

Electronic weighing and measuring station with automatic BMI calculation

After weighing and measuring, both values are indicated on two LCDs integrated into the display panel. On the basis of these values, the seca 763, at the touch of a button, automatically calculates the BMI of the user.  This value provides information on the general nutritional condition of the user on the basis of the recognised WHO standard. With its capacity of 250 kg, its low platform and very robust design, the weighing and measuring station is particularly suitable for heavy users.


Highlights

Products designed down to the last detail.

Example applications
Example applications
Example applications

Product information

Technical product data and support

Technical Data

Capacity: 250 kg
Graduation (g): 50 g
Measuring range in cm: 110 - 200 cm
Graduation [Measuring Rod]: 1 mm
Power supply: Power adapter
Measure (W x H x D): 360 x 2150 x 690 mm
Net weight: 16,7 kg
Functions and Properties: Overload protection, Date and time in print-out, Measuring rod, Transport custors, TARE, HOLD, Auto-BMI, kg/lbs/sts switch-over, cm/inch-switch-over
CE: CE 0123
Declaration of conformity
seca_dec_703_763_769.pdf
seca_dec_703_763_769.pdf seca_dec_703_763_769.pdf
Manual
seca_man_763_int.pdf
seca_man_763_int.pdf seca_man_763_int.pdf
Manual
seca_man_763+764_int_printer-module.pdf
seca_man_763+764_int_printer-module.pdf seca_man_763+764_int_printer-module.pdf
Product sheet
seca_pst_763_en.pdf
seca_pst_763_en.pdf seca_pst_763_en.pdf
Product sheet
seca_pst_764+763_en.pdf
seca_pst_764+763_en.pdf seca_pst_764+763_en.pdf
