seca 284

seca 284 seca 284

seca 284

It takes just the press of a key on the multi-function touch display to send the measurements to a seca 360° wireless printer or PC. No need to worry about fingerprints – the touch display is very easy to clean.

seca 284

seca 284

The measured height is shown in the display on the headpiece.

seca 284

Digital measuring station for height and weight with wireless transmission.

  • Frankfurt Line for precise positioning of head.
  • Fine 50 g (0.1-pound) graduation and high capacity of 300 kg (660 pounds).
  • Automatic calculation of BMI.
  • The three-line multi-function touch display shows weight, height and the automatically calculated BMI.

The measuring station seca 284 measures and weighs in a single step. Other benefits include the high-capacity scale integrated in a slip resistant glass platform with an anti-tip column design, heel positioner and the solid headpiece with the integrated seca Frankfurt Line ‒ for precise head positioning. The seca directprint 284 is equipped with two displays, one is for a direct read-out of height from the headpiece and the other, a three-line multi-function touch display that shows height, weight and the automatically calculated BMI. On top of all that, the scale shows the slightest weight changes with its fine 50-gram graduation.




Highlights

Products designed down to the last detail.

Example applications

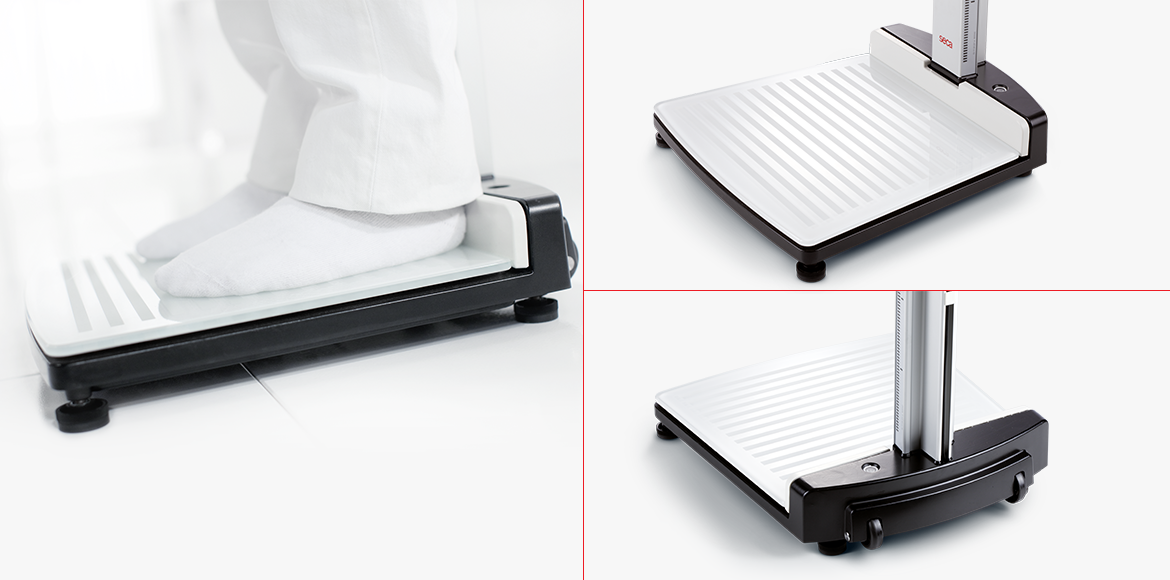

The stable glass platform with integrated heel positioner guarantees precise measurement results and a secure foothold, even on a free-standing scale in the middle of the room.

Example applications

The Frankfurt Line, which is offered only by seca, makes sure the patientʼs head is in exactly the right position.


Product information

Technical product data and support

Technical Data

Capacity: 660 lbs, 300 kg
Graduation (g): 50 g / 0,1 lbs
Measuring range in cm: 30 - 200 cm
Measuring range in inch: 11 inch - 7 ft 2 inch "
Graduation [Measuring Rod]: 1 mm / 0,05 inch
Power supply: Battery, Power adapter
Measure (W x H x D): 434 x 2394 x 466 mm , 17,1 x 94,3 x 18,3 inch
Net weight: 16 kg , 35,3 lbs
Functions and Properties: PRINT, Overload protection, Auto-PRINT, Measuring rod, Transport custors, TARE, Auto-clear, Clear, Patient data input, BFR (Body Fat Rate), Pre-TARE, Mother/Child function, HOLD, Auto-HOLD, BMI, Auto-BMI, kg/lbs switch-over, Calibration, Autom. Calibration, Automatic switch-off, Wireless interface, SEND, RESET, Acoustic signals can be activated, Backlighting, cm/inch-switch-over, Damping, User-defined zero setting, Auto-SEND
CE: CE 0123
Declaration of conformity
seca_dec_284_286.pdf
seca_dec_284_286.pdf seca_dec_284_286.pdf
Document
seca_assin_264+274+284+285_int_band_1.pdf
seca_assin_264+274+284+285_int_band_1.pdf seca_assin_264+274+284+285_int_band_1.pdf
Manual
seca_man_284_int.pdf
seca_man_284_int.pdf seca_man_284_int.pdf
Product sheet
seca_pst_284_en_wl.pdf
seca_pst_284_en_wl.pdf seca_pst_284_en_wl.pdf
Product sheet
seca_pst_284_en-us_wl.pdf
seca_pst_284_en-us_wl.pdf seca_pst_284_en-us_wl.pdf
Revit files
seca_rev-file_284_285
seca_rev-file_284_285 seca_rev-file_284_285
Videos
Video
Videos Videos

Start
