seca 703

seca 703 Measuring rod

Measuring rod

Telescopic measuring rod included.

seca 703

360° view:
Press and hold the left mouse button to rotate the product.

seca 703

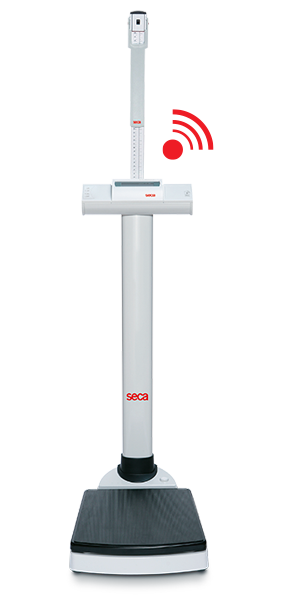

EMR-validated column scale with 660 pounds capacity

The seca 703 column scale is designed to withstand the greatest loads and to continue to function precisely and safely after years of use as on the first day. Stability is not only evident; it is proven by the very high load-bearing capacity and the steady cast-iron base. Even patients who are affected by obesity can be weighed safely and with particularly high precision.

  • Extremely robust, highly precise seca weighing technology with 660 pounds capacity
  • Non-tilting base made of heavy duty cast iron
  • Impact- and scratch-resistant powder coating
  • Wide range of functions: BMI, pre-TARE, HOLD, Auto-HOLD, mother+child function, three-step damping
  • Expandable to measuring station with an optional height measuring rod
  • Optional panda bear facilitates measuring and weighing of children
  • EMR-validated: transmit measured data directly to any electronic medical record system or printer

Highlights

Products designed down to the last detail.

Example applications

Practical castors permit mobile use.

Example applications
Example applications

Product information

Technical product data and support

Technical Data

Capacity: 660 lbs, 300 kg
Graduation (g): 50 g < 150 kg > 100 g / 0,1 lbs < 330 lbs > 0,2 lbs
Power supply: Battery, Power adapter
Measure (W x H x D): 360 x 930 x 520 mm , 14,2 x 36,6 x 20,5 inch
Net weight: 15,2 kg , 33,5 lbs
Functions and Properties: Overload protection, Transport custors, TARE, Auto-clear, Pre-TARE, Mother/Child function, HOLD, Auto-HOLD, BMI, kg/lbs/sts switch-over, Automatic switch-off, RESET, Acoustic signals can be activated, Damping
CE: CE 0123
Declaration of conformity
seca_dec_703_763_769.pdf
seca_dec_703_763_769.pdf seca_dec_703_763_769.pdf
Document
NRTL Certificate
NRTL Certificate NRTL Certificate
Manual
seca_man_703_int.pdf
seca_man_703_int.pdf seca_man_703_int.pdf
Product sheet
seca_pst_703_en-us.pdf
seca_pst_703_en-us.pdf seca_pst_703_en-us.pdf
