seca XLine Base

seca XLine Base Extra low profile

Extra low profile

The extra low profile ensures a smooth and safe transition for wheelchair access onto the platform

Third ramp

Third ramp

Upgrade your seca XLine and further improve accessibility

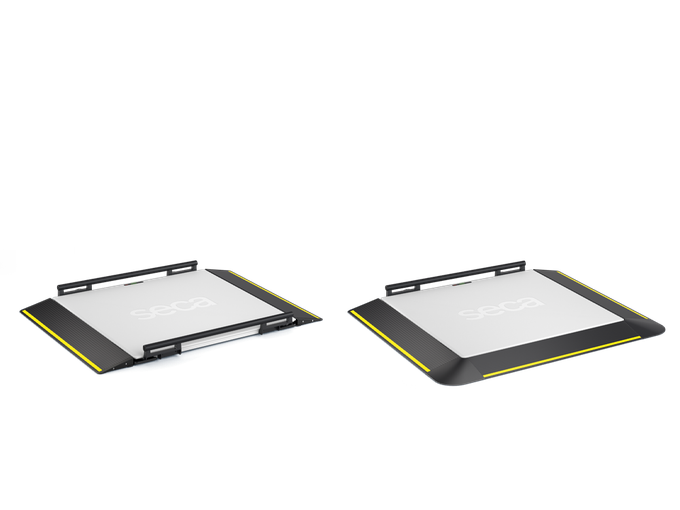

seca XLine Base

EMR-validated wheelchair scale with optional third ramp

Introducing the seca XLine, a breakthrough in medical weighing technology that redefines the standard for weighing individuals in wheelchairs. Our innovation combines a remarkably flat profile, high capacity, and an expansive platform, ensuring the comfortable and easy weighing of individuals in bariatric or power wheelchairs. This advancement not only streamlines the tasks of healthcare personnel but also promotes quick, secure, and uninterrupted patient care.

  • XXL dimensions and capacity to accommodate bariatric wheelchairs
  • Built to withstand the highest loads with a capacity of 500 kg
  • Extra low profile ensures a smooth and safe transition for wheelchair access onto the platform
  • Third ramp available: upgrade your seca XLine and further improve accessibility
  • Tare-by-Scanning: simplify the weighing process by taring out the weight of the wheelchair by scanning its barcode
  • Optional: handrail equipped with an antimicrobial coating to enhance safety or serve as a standing aid
  • EMR-validated, enabling seamless data transmission directly to an Electronic Medical Record (EMR) system or to a printer



Tailor your experience by choosing between the different variant of the seca XLine Base

Every seca XLine Base includes:

+ Platform scale seca 604
+ Two ramps seca 404
+ Guard rail with castors seca 448
+ Display holder seca 476



Choose between:


+ Guard rail seca 446
+ Basic display seca 495

Order code: ON SWX INB NN




+ Guard rail seca 446
+ Basic display RS-232 seca 495 r

Order code: ON SWX INR NN




+ Guard rail seca 446
+ ID-Display™ seca 496

Order code: ON SWX INT NN




+ Third ramp seca 405
+ Basic display seca 495

Order code: ON SWX ICB NN




+ Third ramp seca 405
+ Basic display RS-232 seca 495 r

Order code: ON SWX ICR NN




+ Third ramp seca 405
+ ID-Display™ seca 496

Order code: ON SWX ICT NN


Product information

Technical product data and support

Technical Data

Capacity: 500 kg, 1.100 lbs
Graduation (g): 100 g
Graduation (lbs): 0.2 lb
Power supply: Power adapter
Measure (W x H x D): 1523 x 117 x 1220 mm , 60 x 4.6 x 48 Inch
Net weight: 122.1 lbs , 55,4 kg
Interfaces: WLAN, USB 2.0, Ethernet
Functions and Properties: Transport custors, Backlighting, Acoustic signals can be activated, Patient data input, BMI, Damping, kg/lbs switch-over, RESET, Auto-clear, Clear, Auto-HOLD, HOLD, Pre-TARE, TARE
Declaration of conformity
seca_dec_404_405_int
seca_dec_404_405_int seca_dec_404_405_int
Declaration of conformity
seca_dec_446_448_int
seca_dec_446_448_int seca_dec_446_448_int
Declaration of conformity
seca_dec_476_int
seca_dec_476_int seca_dec_476_int
Declaration of conformity
seca_dec_495_495r_496_int
seca_dec_495_495r_496_int seca_dec_495_495r_496_int
Declaration of conformity
seca_dec_604_int
seca_dec_604_int seca_dec_604_int
Document
seca_product description_XLine_int
seca_product description_XLine_int seca_product description_XLine_int
Manual
seca_man_XLine_int
seca_man_XLine_int seca_man_XLine_int
Product sheet
seca_pst_XLine_Base_en
seca_pst_XLine_Base_en seca_pst_XLine_Base_en
